Size
Load/speed
Pattern
Brand
Category
Symbol
1000/50R25
175A8

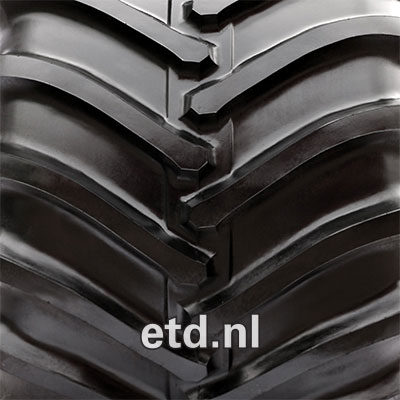

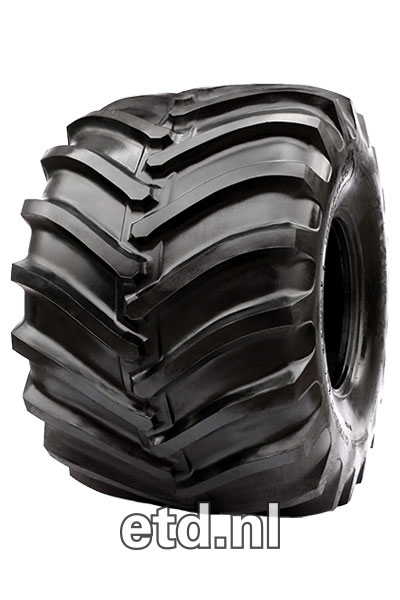

Terra King II R-1W
Tianli
AGR
Specifications
Load / Speed:
175A8
Pattern:
Terra King II R-1W
Category:
AGR
Width:
1000
Series:
50
Structure:
R
Inch:
25
Speed index:
A8
Load / Speed 2:
175B
TL/TT:
TL
40HC:
22
EAN Code:
4260496398470
Factory code:
X2QCM
Technical details
Recommended Rim:
36.00TH-25/1.5
Inflation Pressure (bar):
2.8
Section Width (mm):
1060
Outer Diameter (mm):
1640
Static Load Radius (mm):
731
Rolling Circumference (mm):
4862
Tread Depth (mm):
50
Load (kg) @ Speed (km/h):
6900 / 40
and 6900 / 50
Weight (kg):
337.00
405/70R18
141B
Multi-Surface
Tianli
AGR
Specifications
Load / Speed:
141B
Pattern:
Multi-Surface
Category:
AGR
Width:
405
Series:
70
Structure:
R
Inch:
18
Speed index:
B
TL/TT:
TL
40HC:
168
EAN Code:
6932621685561
Technical details
Weight (kg):
65.00
405/70R20
149A8
Multi-Surface
Tianli
AGR
Specifications
Load / Speed:
149A8
Pattern:
Multi-Surface
Category:
AGR
Width:
405
Series:
70
Structure:
R
Inch:
20
Speed index:
A8
Load / Speed 2:
149B
Specification:
(16.0/70R20)
TL/TT:
TL
40HC:
154
EAN Code:
6932621685578
Factory code:
X2QBT
Technical details
Recommended Rim:
13X20
Inflation Pressure (bar):
4
Section Width (mm):
403
Outer Diameter (mm):
1076
Static Load Radius (mm):
488
Rolling Circumference (mm):
3224
Tread Depth (mm):
26
Load (kg) @ Speed (km/h):
3250 / 40
and 3250 / 50
Weight (kg):
75.00
460/70R24
159A8
Multi-Surface
Tianli
AGR
Specifications
Load / Speed:
159A8
Pattern:
Multi-Surface
Category:
AGR
Width:
460
Series:
70
Structure:
R
Inch:
24
Speed index:
A8
Load / Speed 2:
159B
Specification:
(17.5LR24)
TL/TT:
TL
40HC:
92
EAN Code:
6938112658557
Factory code:
X2QBQ
Technical details
Recommended Rim:
W15x24
Inflation Pressure (bar):
4
Section Width (mm):
463
Outer Diameter (mm):
1250
Static Load Radius (mm):
562
Rolling Circumference (mm):
3701
Tread Depth (mm):
28
Load (kg) @ Speed (km/h):
4375 / 40
and 4375 / 50
Weight (kg):
111.00
500/50R17
145D

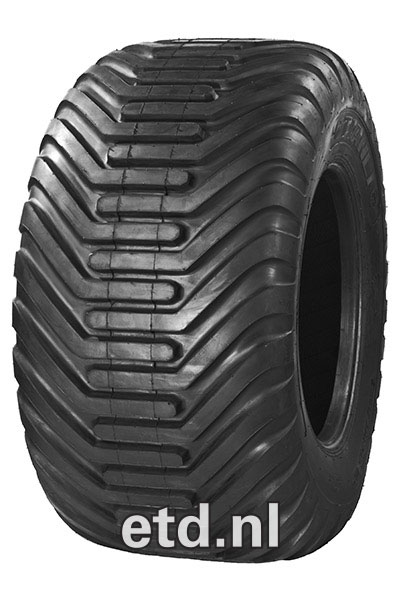

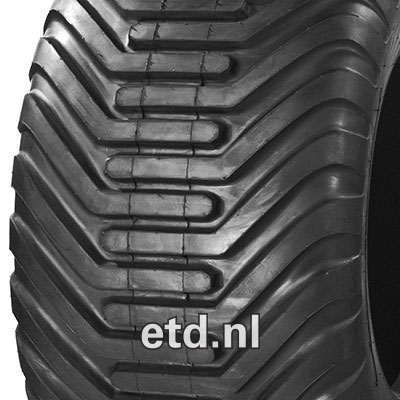

F1 Traction
Tianli
AGR
Specifications
Load / Speed:
145D
Pattern:
F1 Traction
Category:
AGR
Width:
500
Series:
50
Structure:
R
Inch:
17
Speed index:
D
TL/TT:
TL
40HC:
156
EAN Code:
4260399942206
Factory code:
X2Q9W
Technical details
Inflation Pressure (bar):
4
Section Width (mm):
497
Outer Diameter (mm):
925
Static Load Radius (mm):
412
Rolling Circumference (mm):
2780
Tread Depth (mm):
15
Load (kg) @ Speed (km/h):
2900 / 65
Weight (kg):
53.00
500/50R17
157A8
R305
Tianli
AGR
Specifications
Load / Speed:
157A8
Pattern:
R305
Category:
AGR
Width:
500
Series:
50
Structure:
R
Inch:
17
Speed index:
A8
Load / Speed 2:
146D
TL/TT:
TL
40HC:
156
EAN Code:
6938112658571
Factory code:
X1866
Technical details
Inflation Pressure (bar):
3.8
Section Width (mm):
500
Outer Diameter (mm):
927
Static Load Radius (mm):
406
Rolling Circumference (mm):
2793
Tread Depth (mm):
10
Load (kg) @ Speed (km/h):
3000 / 65
Weight (kg):
48.00
500/70R24
164A8
Multi-Surface
Tianli
AGR
Specifications
Load / Speed:
164A8
Pattern:
Multi-Surface
Category:
AGR
Width:
500
Series:
70
Structure:
R
Inch:
24
Speed index:
A8
Load / Speed 2:
164B
Specification:
(19.5LR24)
TL/TT:
TL
40HC:
81
EAN Code:
6938112658564
Factory code:
X2QBR
Technical details
Recommended Rim:
DW16x24
Inflation Pressure (bar):
4
Section Width (mm):
503
Outer Diameter (mm):
1310
Static Load Radius (mm):
592
Rolling Circumference (mm):
3928
Tread Depth (mm):
28
Load (kg) @ Speed (km/h):
5000 / 40
and 5000 / 50
Weight (kg):
126.00
560/60R22.5
164D
Agro Grip HD
Tianli
AGR
Specifications
Load / Speed:
164D
Pattern:
Agro Grip HD
Category:
AGR
Width:
560
Series:
60
Structure:
R
Inch:
22.5
Speed index:
D
TL/TT:
TL
40HC:
100
EAN Code:
6938112658199
Factory code:
X2Q9G
Add. Info:
Steel Belted
Technical details
Recommended Rim:
16.00x22.5
Inflation Pressure (bar):
4
Section Width (mm):
562
Outer Diameter (mm):
1256
Static Load Radius (mm):
559
Rolling Circumference (mm):
3767
Tread Depth (mm):
25
Load (kg) @ Speed (km/h):
5000 / 65
Weight (kg):
113.00
600/50-22.5
159A8

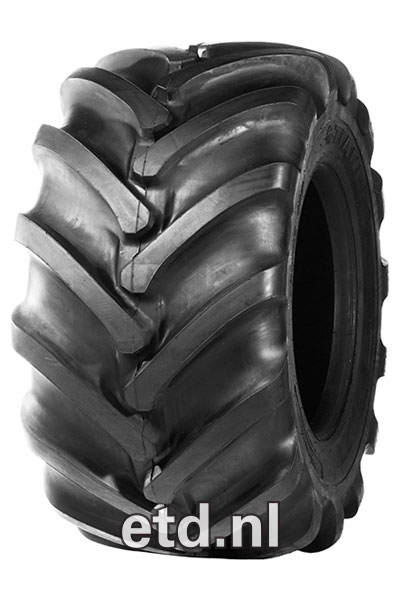

FG(ST) LS-2
Tianli
Forestry
Specifications
Load / Speed:
159A8
Pattern:
FG(ST) LS-2
Category:
Forestry
Width:
600
Series:
50
Structure:
D
Inch:
22.5
Ply Rating:
20PR
Speed index:
A8
Load / Speed 2:
167A2
TL/TT:
TL
40HC:
70
EAN Code:
6938112661557
Factory code:
X2QAI
Add. Info:
Steelflex
Technical details
Inflation Pressure (bar):
5
Section Width (mm):
601
Outer Diameter (mm):
1151
Static Load Radius (mm):
530
Rolling Circumference (mm):
3442
Tread Depth (mm):
42
Load (kg) @ Speed (km/h):
4375 / 40
and 5450 / 10
Weight (kg):
157.00
600/50R22.5
159D
Agro Grip HD
Tianli
AGR
Specifications
Load / Speed:
159D
Pattern:
Agro Grip HD
Category:
AGR
Width:
600
Series:
50
Structure:
R
Inch:
22.5
Speed index:
D
TL/TT:
TL
40HC:
75
EAN Code:
6938112658212
Factory code:
X2Q9H
Add. Info:
Steel Belted
Technical details
Inflation Pressure (bar):
5
Section Width (mm):
608
Outer Diameter (mm):
1168
Static Load Radius (mm):
522
Rolling Circumference (mm):
3507
Tread Depth (mm):
25
Weight (kg):
118.00
650/55R26.5
178D
Agro Grip HD
Tianli
AGR
Specifications
Load / Speed:
178D
Pattern:
Agro Grip HD
Category:
AGR
Width:
650
Series:
55
Structure:
R
Inch:
26.5
Speed index:
D
TL/TT:
TL
40HC:
42
EAN Code:
6938112658304
Factory code:
X2Q9J
Add. Info:
Steel Belted
Technical details
Inflation Pressure (bar):
5
Section Width (mm):
650
Outer Diameter (mm):
1396
Static Load Radius (mm):
625
Rolling Circumference (mm):
4196
Tread Depth (mm):
25
Load (kg) @ Speed (km/h):
7500 / 65
Weight (kg):
182.00
700/45-22.5
156A8
FG(ST) LS-2
Tianli
Forestry
Specifications
Load / Speed:
156A8
Pattern:
FG(ST) LS-2
Category:
Forestry
Width:
700
Series:
45
Structure:
D
Inch:
22.5
Ply Rating:
20PR
Speed index:
A8
Load / Speed 2:
163A2
Specification:
(700/45-22.5)
TL/TT:
TL
40HC:
60
EAN Code:
4260399942862
Factory code:
X1870
Add. Info:
Steelflex
Technical details
Inflation Pressure (bar):
5
Section Width (mm):
700
Outer Diameter (mm):
1151
Static Load Radius (mm):
530
Rolling Circumference (mm):
3441
Tread Depth (mm):
42
Load (kg) @ Speed (km/h):
4000 / 40
and 4875 / 10
Weight (kg):
178.00
710/40-22.5
163A8
FG(ST) LS-2
Tianli
Forestry
Specifications
Load / Speed:
163A8
Pattern:
FG(ST) LS-2
Category:
Forestry
Width:
710
Series:
40
Structure:
D
Inch:
22.5
Ply Rating:
20PR
Speed index:
A8
Load / Speed 2:
170A2
TL/TT:
TL
40HC:
56
EAN Code:
6938112661700
Factory code:
X2QAN
Add. Info:
Steelflex
Technical details
Inflation Pressure (bar):
5
Section Width (mm):
710
Outer Diameter (mm):
1230
Static Load Radius (mm):
586
Rolling Circumference (mm):
3700
Tread Depth (mm):
48
Load (kg) @ Speed (km/h):
4875 / 40
and 6000 / 10
Weight (kg):
211.00
