Size
Load/speed
Pattern
Brand
Category
Symbol
13.6-24
123A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
123A8
Pattern:
TDB120
Category:
AGR
Width:
13.6
Structure:
D
Inch:
24
Ply Rating:
8
Speed index:
A8
Specification:
R-1
TL/TT:
TL
40HC:
174
EAN Code:
8904365508862
Factory code:
3001030102
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
1.9
Width (mm):
345
Outer Diameter (mm):
1210
Static Load Radius (mm):
552
Rolling Circumference (mm):
3619
Weight (kg):
48.37
Pressure Chart:
13.6-26
126A6
TDB121
Ascenso
AGR
Specifications
Load / Speed:
126A6
Pattern:
TDB121
Category:
AGR
Width:
13.6
Structure:
D
Inch:
26
Ply Rating:
8PR
Speed index:
A6
Load / Speed 2:
123A8
Specification:
R1W+
TL/TT:
TT
40HC:
121
EAN Code:
8904365505373
Factory code:
3001030083
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
2.2
Width (mm):
345
Outer Diameter (mm):
1260
Static Load Radius (mm):
578
Rolling Circumference (mm):
3768
Tread Depth (mm):
53.6
Weight (kg):
63.30
Pressure Chart:
13.6-28
125A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
125A8
Pattern:
TDB120
Category:
AGR
Width:
13.6
Structure:
D
Inch:
28
Ply Rating:
8PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
148
EAN Code:
8904365500170
Factory code:
3001030012
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
1.9
Section Width (mm):
345
Outer Diameter (mm):
1311
Static Load Radius (mm):
604
Rolling Circumference (mm):
3921
Tread Depth (mm):
36
Weight (kg):
51.50
Pressure Chart:
13.6-28
125A8
PCB360
Ascenso
Industry
Specifications
Load / Speed:
125A8
Pattern:
PCB360
Category:
Industry
Width:
13.6
Structure:
D
Inch:
28
Ply Rating:
8PR
Speed index:
A8
Specification:
R3
TL/TT:
TL
40HC:
155
EAN Code:
8904365515785
Factory code:
3002070019
Technical details
Recommended Rim:
12
Inflation Pressure (bar):
1.9
Width (mm):
345
Outer Diameter (mm):
1290
Static Load Radius (mm):
594
Rolling Circumference (mm):
3858
Tread Depth (mm):
20.6375
Weight (kg):
57.10
Pressure Chart:
13.6-28
128A6

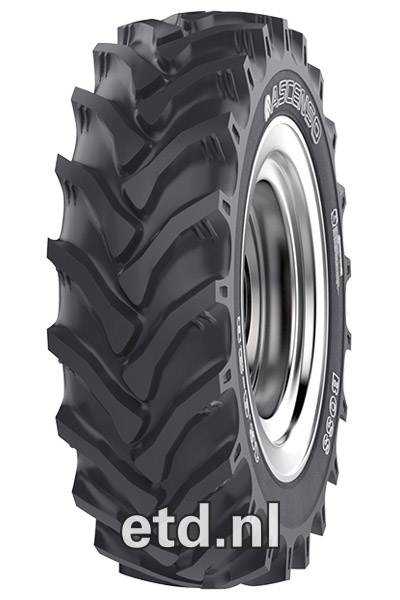

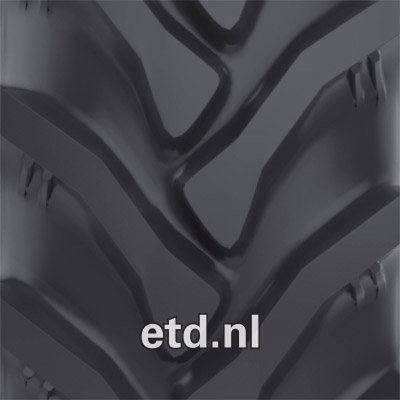

BOSS TD15
Ascenso
Industry
Specifications
Load / Speed:
128A6
Pattern:
BOSS TD15
Category:
Industry
Width:
13.6
Structure:
D
Inch:
28
Ply Rating:
12
Speed index:
A6
Specification:
R-1
TL/TT:
TT
40HC:
148
EAN Code:
8904365523254
Factory code:
3001030119
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
2.3
Width (mm):
345
Outer Diameter (mm):
1310
Static Load Radius (mm):
603
Rolling Circumference (mm):
3918
Weight (kg):
64.40
Pressure Chart:
13.6-28
128A6

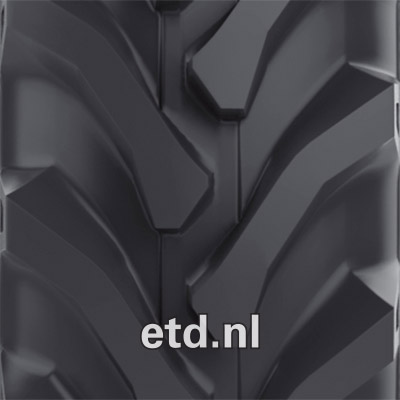

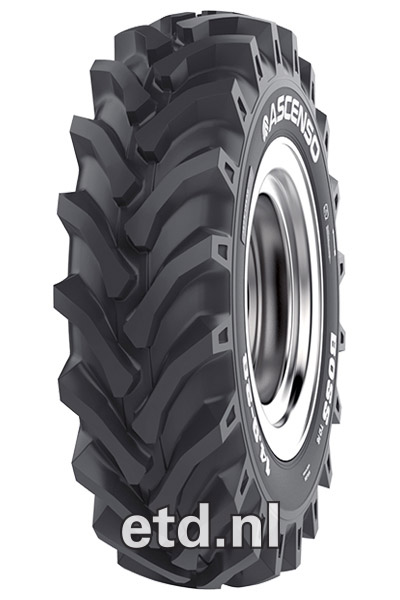

BOSS TD16
Ascenso
Industry
Specifications
Load / Speed:
128A6
Pattern:
BOSS TD16
Category:
Industry
Width:
13.6
Structure:
D
Inch:
28
Ply Rating:
12
Speed index:
A6
Specification:
R-1
TL/TT:
TT
40HC:
148
EAN Code:
8904365508251
Factory code:
3001030094
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
2.3
Width (mm):
360
Outer Diameter (mm):
1340
Static Load Radius (mm):
615
Rolling Circumference (mm):
3918
Weight (kg):
69.38
Pressure Chart:
13.6-28
134A6
TDB121
Ascenso
AGR
Specifications
Load / Speed:
134A6
Pattern:
TDB121
Category:
AGR
Width:
13.6
Structure:
D
Inch:
28
Ply Rating:
12
Speed index:
A6
Load / Speed 2:
130A8
Specification:
R-1W+
TL/TT:
TT
40HC:
148
EAN Code:
8904365516492
Factory code:
3001030080
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
3
Width (mm):
345
Outer Diameter (mm):
1310
Static Load Radius (mm):
603
Rolling Circumference (mm):
3918
Weight (kg):
70.76
Pressure Chart:
13.6-28
125A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
125A8
Pattern:
TDB120
Category:
AGR
Width:
13.6
Structure:
D
Inch:
28
Ply Rating:
8
Speed index:
A8
Specification:
R-1
TL/TT:
TL
40HC:
148
EAN Code:
8904365516379
Factory code:
3001030106
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
1.9
Width (mm):
345
Outer Diameter (mm):
1311
Static Load Radius (mm):
603
Rolling Circumference (mm):
3921
Weight (kg):
53.99
Pressure Chart:
13.6-36
129A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
129A8
Pattern:
TDB120
Category:
AGR
Width:
13.6
Structure:
D
Inch:
36
Ply Rating:
8PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
100
EAN Code:
8904365500224
Factory code:
3001030008
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
1.9
Section Width (mm):
345
Outer Diameter (mm):
1514
Static Load Radius (mm):
705
Rolling Circumference (mm):
4529
Tread Depth (mm):
36
Weight (kg):
66.00
Pressure Chart:
13.6-36
138A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
138A8
Pattern:
TDB120
Category:
AGR
Width:
13.6
Structure:
D
Inch:
36
Ply Rating:
12PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
100
EAN Code:
8904365504819
Factory code:
3001030069
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
3.2
Width (mm):
345
Outer Diameter (mm):
1514
Static Load Radius (mm):
705
Rolling Circumference (mm):
4529
Tread Depth (mm):
36
Weight (kg):
71.00
Pressure Chart:
13.6-36
142A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
142A8
Pattern:
TDB120
Category:
AGR
Width:
13.6
Structure:
D
Inch:
36
Ply Rating:
14PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
100
EAN Code:
8904365506462
Factory code:
3001030089
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
3.5
Width (mm):
345
Outer Diameter (mm):
1514
Static Load Radius (mm):
705
Rolling Circumference (mm):
4529
Tread Depth (mm):
36
Weight (kg):
74.10
Pressure Chart:
13.6-38
131A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
131A8
Pattern:
TDB120
Category:
AGR
Width:
13.6
Structure:
D
Inch:
38
Ply Rating:
8PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
100
EAN Code:
8904365502358
Factory code:
3001030047
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
2
Section Width (mm):
345
Outer Diameter (mm):
1565
Static Load Radius (mm):
730
Rolling Circumference (mm):
4681
Tread Depth (mm):
36
Weight (kg):
67.00
Pressure Chart:
13.6-38
136A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
136A8
Pattern:
TDB120
Category:
AGR
Width:
13.6
Structure:
D
Inch:
38
Ply Rating:
10PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
100
EAN Code:
8904365504826
Factory code:
3001030070
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
2.5
Width (mm):
345
Outer Diameter (mm):
1565
Static Load Radius (mm):
730
Rolling Circumference (mm):
4681
Tread Depth (mm):
36
Weight (kg):
74.00
Pressure Chart:
13.6-38
138A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
138A8
Pattern:
TDB120
Category:
AGR
Width:
13.6
Structure:
D
Inch:
38
Ply Rating:
14PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
100
EAN Code:
8904365506479
Factory code:
3001030090
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
3.5
Width (mm):
345
Outer Diameter (mm):
1565
Static Load Radius (mm):
730
Rolling Circumference (mm):
4681
Tread Depth (mm):
36
Weight (kg):
76.60
Pressure Chart:
13.6-38
131A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
131A8
Pattern:
TDB120
Category:
AGR
Width:
13.6
Structure:
D
Inch:
38
Ply Rating:
8
Speed index:
A8
Specification:
R-1
TL/TT:
TL
40HC:
100
EAN Code:
8904365508954
Factory code:
3001030116
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
2
Width (mm):
345
Outer Diameter (mm):
1565
Static Load Radius (mm):
730
Rolling Circumference (mm):
4681
Weight (kg):
69.83
Pressure Chart:
13/80-20
170A2
SCB430
Ascenso
Industry
Specifications
Load / Speed:
170A2
Pattern:
SCB430
Category:
Industry
Width:
13
Series:
80
Structure:
D
Inch:
20
Ply Rating:
18PR
Speed index:
A2
Specification:
C1
TL/TT:
TL
40HC:
240
EAN Code:
8904365514535
Factory code:
3002070013
Technical details
Recommended Rim:
L8
Inflation Pressure (bar):
9
Width (mm):
326
Outer Diameter (mm):
1018
Static Load Radius (mm):
477
Rolling Circumference (mm):
3134
Tread Depth (mm):
18.2
Weight (kg):
75.00
Pressure Chart:
14-17.5
155A2
SSB331
Ascenso
Industry
Specifications
Load / Speed:
155A2
Pattern:
SSB331
Category:
Industry
Width:
14
Structure:
D
Inch:
17.5
Ply Rating:
14PR
Speed index:
A2
Specification:
R4
TL/TT:
TL
40HC:
260
EAN Code:
8904365500613
Factory code:
3002040010
Technical details
Recommended Rim:
10.5
Inflation Pressure (bar):
5.5
Section Width (mm):
349
Outer Diameter (mm):
921
Static Load Radius (mm):
419
Rolling Circumference (mm):
2755
Tread Depth (mm):
24.1
Weight (kg):
49.20
Pressure Chart:
14-17.5
155A2
SSB332
Ascenso
Industry
Specifications
Load / Speed:
155A2
Pattern:
SSB332
Category:
Industry
Width:
14
Structure:
D
Inch:
17.5
Ply Rating:
14PR
Speed index:
A2
Specification:
L5 R4
TL/TT:
TL
40HC:
260
EAN Code:
8904365510001
Factory code:
3002040033
Add. Info:
Extra Deep
Technical details
Recommended Rim:
10.5
Inflation Pressure (bar):
5.5
Section Width (mm):
349
Outer Diameter (mm):
925
Static Load Radius (mm):
420
Rolling Circumference (mm):
2766
Tread Depth (mm):
37.5
Weight (kg):
59.00
Pressure Chart:
14-17.5
SSB331
Ascenso
Industry
Specifications
Pattern:
SSB331
Category:
Industry
Width:
14
Structure:
D
Inch:
17.5
Ply Rating:
6
Specification:
R-4
TL/TT:
TL
40HC:
260
EAN Code:
8904365516102
Factory code:
3002040051
Technical details
Recommended Rim:
10.5
Inflation Pressure (bar):
5.5
Width (mm):
349
Outer Diameter (mm):
921
Static Load Radius (mm):
419
Rolling Circumference (mm):
2755
Weight (kg):
42.12
Pressure Chart:
14.0/65-16
142A8
IMB160
Ascenso
AGR
Specifications
Load / Speed:
142A8
Pattern:
IMB160
Category:
AGR
Width:
14.0
Series:
65
Structure:
D
Inch:
16
Ply Rating:
14PR
Speed index:
A8
Load / Speed 2:
129A8
Specification:
I1
TL/TT:
TL
40HC:
270
EAN Code:
8904365507384
Factory code:
3001050093
Technical details
Recommended Rim:
11
Inflation Pressure (bar):
4
Width (mm):
357
Outer Diameter (mm):
874
Static Load Radius (mm):
396
Rolling Circumference (mm):
2614
Tread Depth (mm):
12
Weight (kg):
28.70
Pressure Chart:
14.0/70-20
156A2
SCB430
Ascenso
Industry
Specifications
Load / Speed:
156A2
Pattern:
SCB430
Category:
Industry
Width:
14
Series:
70
Structure:
D
Inch:
20
Ply Rating:
12
Speed index:
A2
Specification:
C1
TL/TT:
TT
40HC:
208
EAN Code:
8904365508206
Factory code:
3002070010
Technical details
Recommended Rim:
11
Inflation Pressure (bar):
4.5
Width (mm):
380
Outer Diameter (mm):
975
Static Load Radius (mm):
447
Rolling Circumference (mm):
2916
Tread Depth (mm):
18
Weight (kg):
72.70
Pressure Chart:
14.0/70-20
167A2
SCB430
Ascenso
Industry
Specifications
Load / Speed:
167A2
Pattern:
SCB430
Category:
Industry
Width:
14
Series:
70
Structure:
D
Inch:
20
Ply Rating:
20
Speed index:
A2
Specification:
C1
TL/TT:
TL
40HC:
208
EAN Code:
8904365509241
Factory code:
3002070012
Technical details
Recommended Rim:
11
Inflation Pressure (bar):
7.6
Width (mm):
380
Outer Diameter (mm):
975
Static Load Radius (mm):
447
Rolling Circumference (mm):
2916
Tread Depth (mm):
18
Weight (kg):
84.90
Pressure Chart:
14.00-20
SPB263
Ascenso
Industry
Specifications
Pattern:
SPB263
Category:
Industry
Width:
14
Structure:
D
Inch:
20
Ply Rating:
16
Specification:
E-7
TL/TT:
TT
40HC:
140
EAN Code:
8904365520086
Factory code:
3003200003
Technical details
Recommended Rim:
10
Inflation Pressure (bar):
2.5
Width (mm):
375
Outer Diameter (mm):
1219
Static Load Radius (mm):
547
Rolling Circumference (mm):
3646
Weight (kg):
66.38
Pressure Chart:
14.00-24
147A8
TGB610
Ascenso
OTR
Specifications
Load / Speed:
147A8
Pattern:
TGB610
Category:
OTR
Width:
14
Structure:
D
Inch:
24
Ply Rating:
12PR
Speed index:
A8
Specification:
G2
TL/TT:
TL
40HC:
135
EAN Code:
8904365500699
Factory code:
3003160002
Technical details
Recommended Rim:
8
Inflation Pressure (bar):
2.8
Section Width (mm):
362
Outer Diameter (mm):
1348
Static Load Radius (mm):
610
Rolling Circumference (mm):
4032
Tread Depth (mm):
25.7
Weight (kg):
74.40
Pressure Chart:
14.00-24
153A8
MIB405
Ascenso
OTR
Specifications
Load / Speed:
153A8
Pattern:

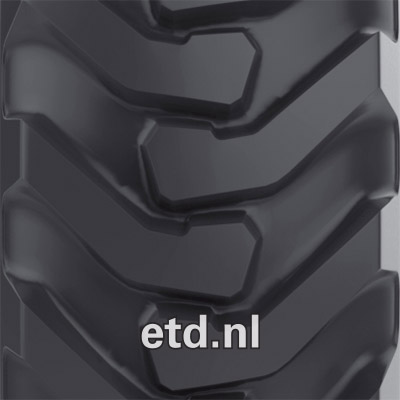

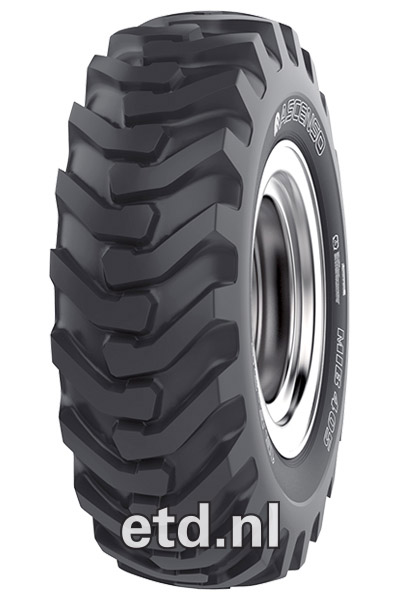

MIB405
Category:
OTR
Width:
14
Structure:
D
Inch:
24
Ply Rating:
16PR
Speed index:
A8
Load / Speed 2:
177A2
Specification:
L2/G2
TL/TT:
TL
40HC:
135
EAN Code:
8904365500743
Factory code:
3002140002
Technical details
Recommended Rim:
10
Inflation Pressure (bar):
3.8
Section Width (mm):
375
Outer Diameter (mm):
1348
Static Load Radius (mm):
610
Rolling Circumference (mm):
4032
Tread Depth (mm):
25.6
Weight (kg):
80.20
Pressure Chart:
14.00-24
153A8
TGB610
Ascenso
OTR
Specifications
Load / Speed:
153A8
Pattern:
TGB610
Category:
OTR
Width:
14
Structure:
D
Inch:
24
Ply Rating:
16PR
Speed index:
A8
Specification:
G2
TL/TT:
TL
40HC:
135
EAN Code:
8904365500705
Factory code:
3003160004
Technical details
Recommended Rim:
8
Inflation Pressure (bar):
3.8
Section Width (mm):
362
Outer Diameter (mm):
1348
Static Load Radius (mm):
610
Rolling Circumference (mm):
4032
Tread Depth (mm):
25.7
Weight (kg):
79.30
Pressure Chart:
14.00-24
177A2
MIB406
Ascenso
Industry
Specifications
Load / Speed:
177A2
Pattern:
MIB406
Category:
Industry
Width:
14
Structure:
D
Inch:
24
Ply Rating:
16PR
Speed index:
A2
Load / Speed 2:
153A8
Specification:
L2/G2
TL/TT:
TL
40HC:
135
EAN Code:
8904365503164
Factory code:
3002140014
Add. Info:
Hard Surface
Technical details
Recommended Rim:
10
Inflation Pressure (bar):
5.5
Section Width (mm):
377
Outer Diameter (mm):
1348
Static Load Radius (mm):
610
Rolling Circumference (mm):
4032
Tread Depth (mm):
25.4
Weight (kg):
88.30
Pressure Chart:
14.00-24
200A2
PEB720
Ascenso
Industry
Specifications
Load / Speed:
200A2
Pattern:
PEB720
Category:
Industry
Width:
14
Structure:
D
Inch:
24
Ply Rating:
32
Speed index:
A2
Specification:
IND3
TL/TT:
TL
40HC:
81
EAN Code:
8904365509074
Factory code:
3004060012
Technical details
Recommended Rim:
10.0WA/VA
Inflation Pressure (bar):
10
Width (mm):
375
Outer Diameter (mm):
1370
Static Load Radius (mm):
619
Rolling Circumference (mm):
4098
Tread Depth (mm):
31.8
Weight (kg):
148.80
Pressure Chart:
14.00-24
172A2
MIB405
Ascenso
OTR
Specifications
Load / Speed:
172A2
Pattern:
MIB405
Category:
OTR
Width:
14
Structure:
D
Inch:
24
Ply Rating:
12PR
Speed index:
A2
Specification:
L2/G2
TL/TT:
TL
40HC:
128
EAN Code:
8904365500736
Factory code:
3002140004
Technical details
Recommended Rim:
10
Inflation Pressure (bar):
2.5
Section Width (mm):
375
Outer Diameter (mm):
1348
Static Load Radius (mm):
610
Rolling Circumference (mm):
4032
Tread Depth (mm):
25.4
Weight (kg):
67.80
Pressure Chart:
14.00-24
188A2
PEB720
Ascenso
Industry
Specifications
Load / Speed:
188A2
Pattern:
PEB720
Category:
Industry
Width:
14.00
Structure:
D
Inch:
24
Ply Rating:
28
Speed index:
A2
Load / Speed 2:
168B
Specification:
IND3
TL/TT:
TL
40HC:
81
EAN Code:
8904365509098
Factory code:
3004060011
Technical details
Recommended Rim:
10.00WA/VA
Inflation Pressure (bar):
9.25
Width (mm):
375
Outer Diameter (mm):
1370
Static Load Radius (mm):
619
Rolling Circumference (mm):
4098
Tread Depth (mm):
31.8
Weight (kg):
141.70
Pressure Chart:
14.00-24
188A2
PEB720
Ascenso
Industry
Specifications
Load / Speed:
188A2
Pattern:
PEB720
Category:
Industry
Width:
14
Structure:
D
Inch:
24
Ply Rating:
28PR
Speed index:
A2
Specification:
IND3
TL/TT:
TL
40HC:
81
EAN Code:
8904365509081
Factory code:
3004060010
Technical details
Recommended Rim:
10.0WA/VA
Inflation Pressure (bar):
9.25
Section Width (mm):
375
Outer Diameter (mm):
1370
Static Load Radius (mm):
619
Rolling Circumference (mm):
4098
Tread Depth (mm):
31.8
Weight (kg):
136.20
Pressure Chart:
14.00-24
188A2
PEB720
Ascenso
Industry
Specifications
Load / Speed:
188A2
Pattern:
PEB720
Category:
Industry
Width:
14
Structure:
D
Inch:
24
Ply Rating:
28PR
Speed index:
A2
Specification:
IND3 - Flat Base
TL/TT:
TL
40HC:
81
EAN Code:
8904365523193
Factory code:
3004060024
Technical details
Recommended Rim:
10.0W
Inflation Pressure (bar):
10
Section Width (mm):
375
Outer Diameter (mm):
1370
Static Load Radius (mm):
619
Rolling Circumference (mm):
4098
Tread Depth (mm):
31
Weight (kg):
138.32
Pressure Chart:
14.00-24
153A8

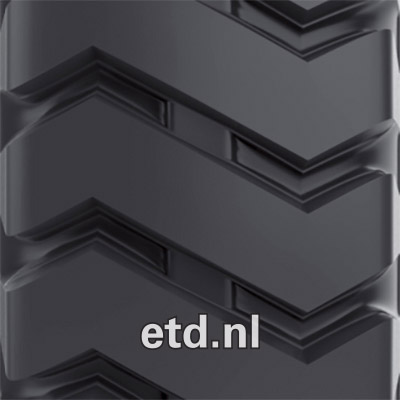

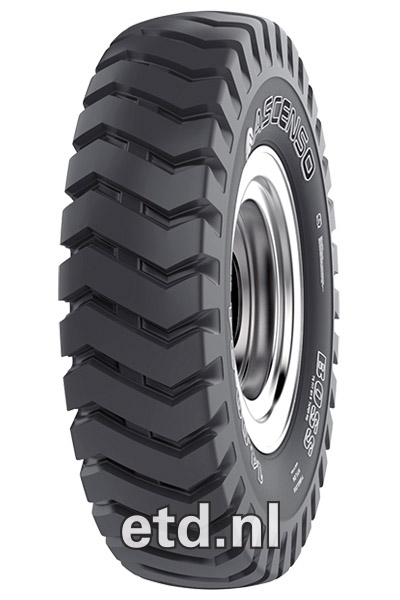

BOSS TG60
Ascenso
Industry
Specifications
Load / Speed:
153A8
Pattern:
BOSS TG60
Category:
Industry
Width:
14
Structure:
D
Inch:
24
Ply Rating:
16
Speed index:
A8
Specification:
G-3
TL/TT:
TL
40HC:
136
EAN Code:
8904365505717
Factory code:
3003160005
Technical details
Recommended Rim:
10.00VA/5°
Inflation Pressure (bar):
3.5
Width (mm):
375
Outer Diameter (mm):
1368
Static Load Radius (mm):
618
Rolling Circumference (mm):
4091
Weight (kg):
100.92
Pressure Chart:
14.00-25
161B
BOSS BH31
Ascenso
Industry
Specifications
Load / Speed:
161B
Pattern:
BOSS BH31
Category:
Industry
Width:
14
Structure:
D
Inch:
25
Ply Rating:
20PR
Speed index:
B
Specification:
E3
TL/TT:
TT
40HC:
81
EAN Code:
8904365502389
Factory code:
3002020004
Technical details
Recommended Rim:
20
Inflation Pressure (bar):
4,8
Section Width (mm):
375
Outer Diameter (mm):
1368
Static Load Radius (mm):
620
Rolling Circumference (mm):
4091
Tread Depth (mm):
31.7
Weight (kg):
115.30
Pressure Chart:
14.00-25
173B
RTB500
Ascenso
Industry
Specifications
Load / Speed:
173B
Pattern:
RTB500
Category:
Industry
Width:
14.00
Structure:
D
Inch:
25
Ply Rating:
36
Speed index:
B
Specification:
E4
TL/TT:
TT
40HC:
81
EAN Code:
8904365515211
Factory code:
3003060005
Technical details
Recommended Rim:
10.00/1.5
Inflation Pressure (bar):
6.5
Width (mm):
379
Outer Diameter (mm):
1420
Static Load Radius (mm):
641
Rolling Circumference (mm):
4247
Tread Depth (mm):
50
Weight (kg):
193.50
Pressure Chart:
14.00-25
150B
BOSS BH31
Ascenso
Industry
Specifications
Load / Speed:
150B
Pattern:
BOSS BH31
Category:
Industry
Width:
14
Structure:
D
Inch:
25
Ply Rating:
12
Speed index:
B
Load / Speed 2:
172A2
Specification:
E-3
TL/TT:
TT
40HC:
81
EAN Code:
8904365504734
Factory code:
3002020045
Technical details
Recommended Rim:
10
Inflation Pressure (bar):
2.8
Width (mm):
375
Outer Diameter (mm):
1368
Static Load Radius (mm):
620
Rolling Circumference (mm):
4091
Weight (kg):
102.42
Pressure Chart:
14.00R24
175A2

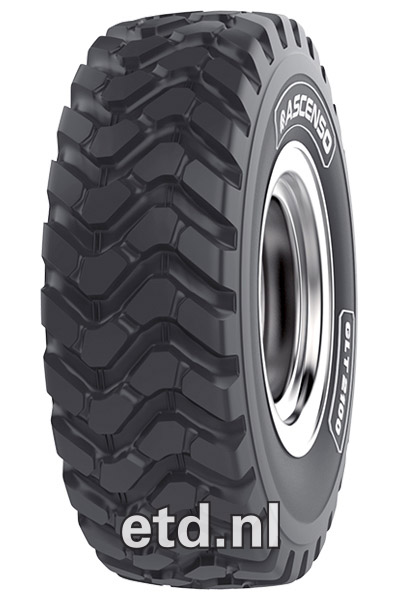

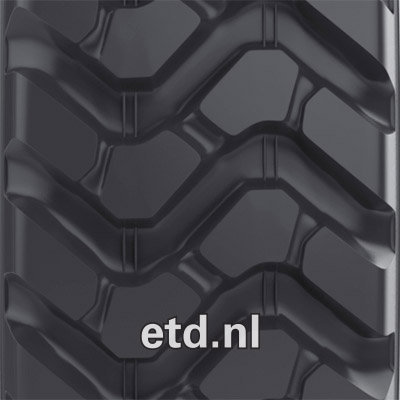

GLT2100
Ascenso
OTR
Specifications
Load / Speed:
175A2
Pattern:
GLT2100
Category:
OTR
Width:
14.00
Structure:
R
Inch:
24
Speed index:
A2
Load / Speed 2:
153A8
Specification:
L2/G2 */*
TL/TT:
TL
40HC:
110
EAN Code:
8904365519585
Factory code:
3003150001
Technical details
Recommended Rim:
8.00TG
Inflation Pressure (bar):
3.75
Section Width (mm):
362
Outer Diameter (mm):
1360
Static Load Radius (mm):
614
Rolling Circumference (mm):
4067
Tread Depth (mm):
25.5
Weight (kg):
121.50
Pressure Chart:
14.5-20
139G
MPB400
Ascenso
Industry
Specifications
Load / Speed:
139G
Pattern:
MPB400
Category:
Industry
Width:
14.5
Structure:
D
Inch:
20
Ply Rating:
14PR
Speed index:
G
Specification:
R4
TL/TT:
TL
40HC:
175
EAN Code:
8904365504048
Factory code:
3002120005
Technical details
Recommended Rim:
11
Inflation Pressure (bar):
3.5
Section Width (mm):
355
Outer Diameter (mm):
1095
Static Load Radius (mm):
496
Rolling Circumference (mm):
3275
Tread Depth (mm):
25
Weight (kg):
58.30
Pressure Chart:
14.5-20
143B
EXB380
Ascenso
Industry
Specifications
Load / Speed:
143B
Pattern:
EXB380
Category:
Industry
Width:
360
Series:
85
Structure:
D
Inch:
20
Ply Rating:
14PR
Speed index:
B
Specification:
E2
TL/TT:
TL
40HC:
198
EAN Code:
8904365515747
Factory code:
3002090009
Technical details
Recommended Rim:
11
Inflation Pressure (bar):
3.5
Width (mm):
355
Outer Diameter (mm):
1095
Static Load Radius (mm):
496
Rolling Circumference (mm):
3275
Tread Depth (mm):
24.61
Weight (kg):
55.30
Pressure Chart:
14.5/75-16.1
131A8
BHB313
Ascenso
Industry
Specifications
Load / Speed:
131A8
Pattern:
BHB313
Category:
Industry
Width:
14.5
Series:
75
Structure:
D
Inch:
16.1
Ply Rating:
16
Speed index:
A8
Specification:
F-3
TL/TT:
TL
40HC:
280
EAN Code:
8904365520123
Factory code:
3002020066
Technical details
Recommended Rim:
11
Inflation Pressure (bar):
4.4
Width (mm):
373
Outer Diameter (mm):
904
Static Load Radius (mm):
409
Rolling Circumference (mm):
2704
Weight (kg):
42.48
Pressure Chart:
14.9-24
128A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
128A8
Pattern:
TDB120
Category:
AGR
Width:
14.9
Structure:
D
Inch:
24
Ply Rating:
8PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
160
EAN Code:
8904365500187
Factory code:
3001030009
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1.8
Section Width (mm):
378
Outer Diameter (mm):
1265
Static Load Radius (mm):
576
Rolling Circumference (mm):
3784
Tread Depth (mm):
34
Weight (kg):
56.00
Pressure Chart:
14.9-24
136A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
136A8
Pattern:
TDB120
Category:
AGR
Width:
14.9
Structure:
D
Inch:
24
Ply Rating:
12PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
160
EAN Code:
8904365501771
Factory code:
3001030033
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1,8
Section Width (mm):
378
Outer Diameter (mm):
1265
Static Load Radius (mm):
576
Rolling Circumference (mm):
3784
Tread Depth (mm):
34
Weight (kg):
62.80
Pressure Chart:
14.9-24
128A8
IRB260
Ascenso
AGR
Specifications
Load / Speed:
128A8
Pattern:
IRB260
Category:
AGR
Width:
14.9
Structure:
D
Inch:
24
Ply Rating:
8PR
Speed index:
A8
Specification:
R1
TL/TT:
TL
40HC:
168
EAN Code:
8904365502334
Factory code:
3001150002
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1.8
Section Width (mm):
378
Outer Diameter (mm):
3745
Static Load Radius (mm):
570
Rolling Circumference (mm):
3745
Tread Depth (mm):
29.2
Weight (kg):
46.90
Pressure Chart:
14.9-24
145A8
BHB310
Ascenso
Industry
Specifications
Load / Speed:
145A8
Pattern:
BHB310
Category:
Industry
Width:
14.9
Structure:
D
Inch:
24
Ply Rating:
12PR
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
148
EAN Code:
8904365503096
Factory code:
3002020028
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
2.9
Section Width (mm):
378
Outer Diameter (mm):
1241
Static Load Radius (mm):
565
Rolling Circumference (mm):
3712
Tread Depth (mm):
24.5
Weight (kg):
61.70
Pressure Chart:
14.9-24
140A8
AFB821
Ascenso
Forestry
Specifications
Load / Speed:
140A8
Pattern:
AFB821
Category:
Forestry
Width:
14.9
Structure:
D
Inch:
24
Ply Rating:
16PR
Speed index:
A8
Specification:
R1 Steel Belted
TL/TT:
TL
40HC:
160
EAN Code:
8904365504888
Factory code:
3005040007
Add. Info:
Cut Resistant
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
2.8
Width (mm):
378
Outer Diameter (mm):
1265
Static Load Radius (mm):
575
Rolling Circumference (mm):
3799
Weight (kg):
78.00
Pressure Chart:
14.9-24
128A8
PCB360
Ascenso
Industry
Specifications
Load / Speed:
128A8
Pattern:
PCB360
Category:
Industry
Width:
14.9
Structure:
D
Inch:
24
Ply Rating:
8PR
Speed index:
A8
Specification:
R3
TL/TT:
TL
40HC:
148
EAN Code:
8904365515761
Factory code:
3002070021
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
1.8
Width (mm):
378
Outer Diameter (mm):
1265
Static Load Radius (mm):
575
Rolling Circumference (mm):
3783
Tread Depth (mm):
19.84375
Weight (kg):
58.00
Pressure Chart:
14.9-24
124A8

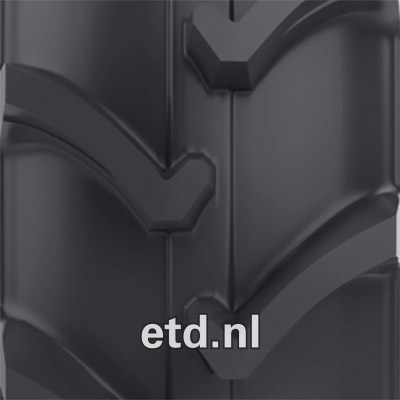

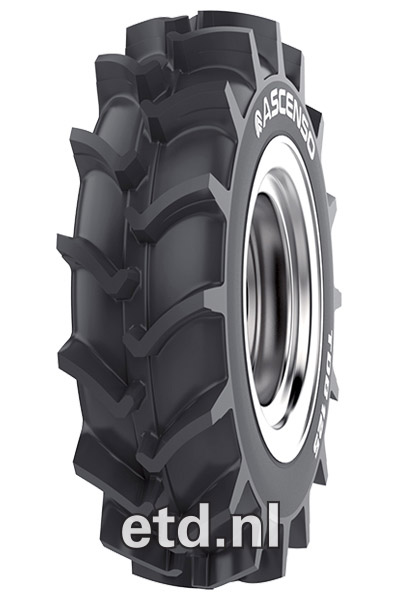

TDB125
Ascenso
AGR
Specifications
Load / Speed:
124A8
Pattern:
TDB125
Category:
AGR
Width:
14.9
Structure:
D
Inch:
24
Ply Rating:
8
Speed index:
A8
Load / Speed 2:
126A6
Specification:
R-2
TL/TT:
TT
40HC:
124
EAN Code:
8904365515167
Factory code:
3001030134
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1.8
Width (mm):
378
Outer Diameter (mm):
1305
Static Load Radius (mm):
592
Rolling Circumference (mm):
3903
Weight (kg):
71.32
Pressure Chart:
14.9-24
128A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
128A8
Pattern:
TDB120
Category:
AGR
Width:
14.9
Structure:
D
Inch:
24
Ply Rating:
8
Speed index:
A8
Specification:
R-1
TL/TT:
TL
40HC:
160
EAN Code:
8904365516324
Factory code:
3001030103
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1.8
Width (mm):
378
Outer Diameter (mm):
1265
Static Load Radius (mm):
575
Rolling Circumference (mm):
3784
Weight (kg):
57.32
Pressure Chart:
14.9-26
129A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
129A8
Pattern:
TDB120
Category:
AGR
Width:
14.9
Structure:
D
Inch:
26
Ply Rating:
10PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
148
EAN Code:
8904365502822
Factory code:
3001030056
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
2.2
Section Width (mm):
378
Outer Diameter (mm):
1316
Static Load Radius (mm):
601
Rolling Circumference (mm):
3936
Tread Depth (mm):
36.2
Weight (kg):
63.40
Pressure Chart:
14.9-26
134A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
134A8
Pattern:
TDB120
Category:
AGR
Width:
14.9
Structure:
D
Inch:
26
Ply Rating:
12PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
148
EAN Code:
8904365506448
Factory code:
3001030087
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
2.7
Width (mm):
378
Outer Diameter (mm):
1316
Static Load Radius (mm):
601
Rolling Circumference (mm):
3936
Tread Depth (mm):
38
Weight (kg):
64.60
Pressure Chart:
